Tubing Swab Mandrels
Guiberson tubing swabs have set industry performance standards for
nearly a half century. Today, Guiberson’s wide selection of swabs
and cups assures the right combination for every swabbing application,
from light load, shallow well service to the heaviest loads and the
deepest wells.

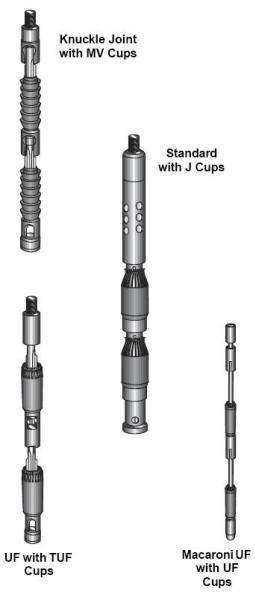

Knuckle Joint Swab
The original Guiberson Knuckle Joint Swab allows cups to be changed in
just 10 seconds. To disassemble, the mandrel is lifted 90° and the
two sections of the joint are separated. The old cup can then be removed
rapidly and the new one dropped in place. There are no threads on the
swab knuckles, no danger of damage and galling, and no tools needed to
change cups.
Made of tough, cast, heat-treated steel, the Knuckle Joint Swab provides
a large external bypass for fast falling and uses the cup itself as a
valve. As many mandrels and cups as desired may be run with the Knuckle
Joint. Upper mandrels are keyed to hold the joint sockets in line, and
square shoulders reinforce the joint, preventing spreading under load.
The rigidity of the joint absolutely prevents jackknifing and
disassembly in the well. The lower mandrel allows a full 360° swivel
action. Adapted as necessary, all Guiberson tubing swab cups except the
Type ‘J’ may be run on this swab.
Standard Tubing Swab
A fast falling, threaded, internal bypass swab, the Guiberson Standard
Swab uses two cups on its one-piece mandrel. Its large bypass area and
full-opening check valve assure rapid running and smooth, trouble-free
swabbing. The corrosion-resistant ball and steel seat seal perfectly
under long, tough service. A no-go, machined as a part of the bottom
retaining nut, prevents sticking in sating nipples and tight spots. This
no-go may be machined off when additional clearance is desired. Adapted
as necessary, all Guiberson tubing swab cups may be run on the Standard
Swab.
Type ‘UF’ Tubing Swab
The ‘UF’ is a threaded joint, external bypass swab, similar to the
Knuckle Joint, except that it is threaded. A forged, heat-treated steel
assembly, the 2-3/8” and larger ‘UF’ swabs are ideal in applications
where internal bypass is not suitable. The 2-1/16” and smaller sizes are
ideal for swabbing in small diameter tubing. In sizes smaller than
2-3/8”, ‘UF’, ‘MV’, and ‘TA’ cups are available for this application. In
the larger tubing sizes, all Guiberson tubing swab cups (adapted as
necessary) except the Type ‘J’ may be used.
|
 |
